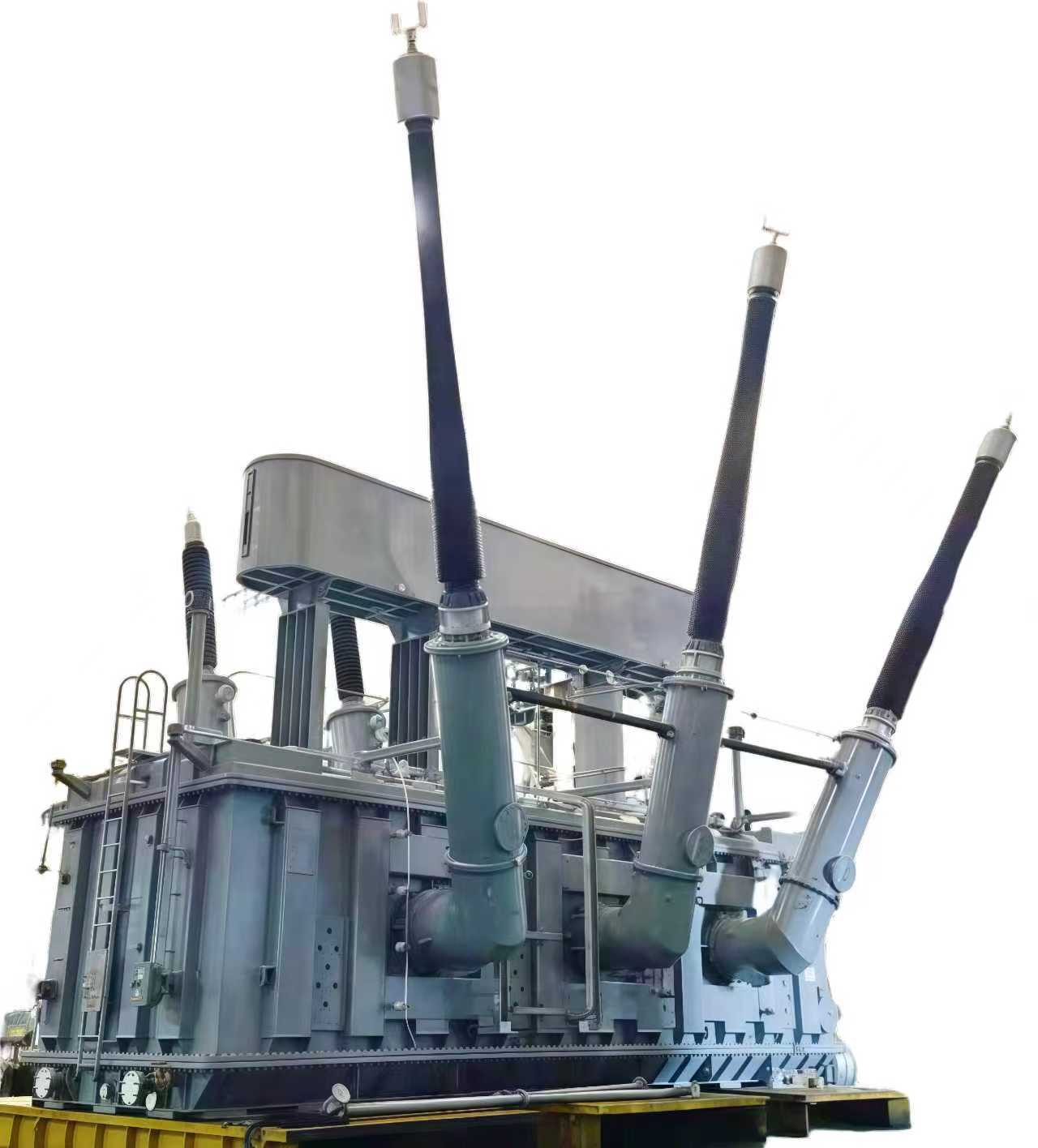

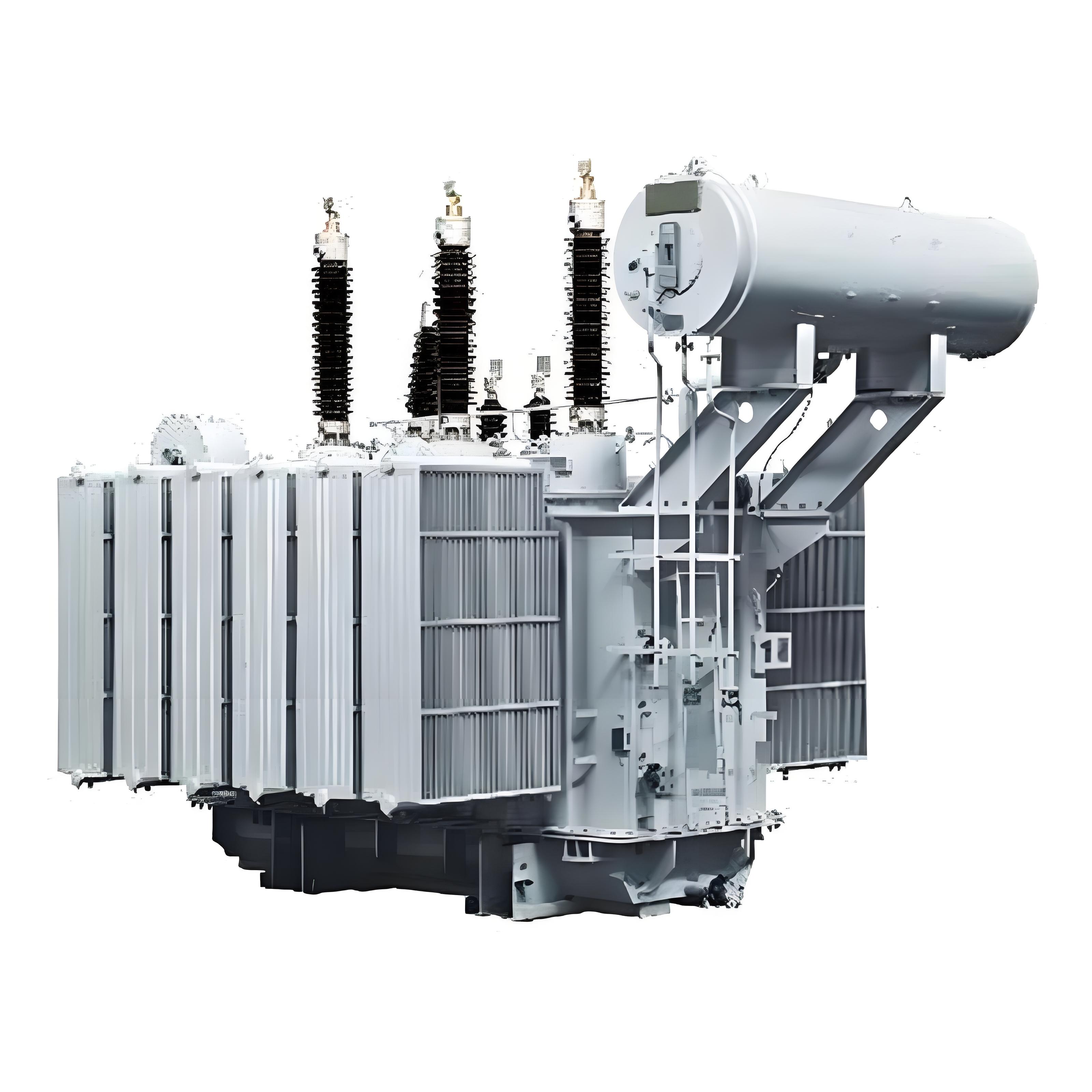

China Factory Custom 220kV Oil Immersed Power Transformer IEC Standard for Global Grid Project

As a core extra-high voltage (EHV) transmission equipment in modern power grid systems, our 220kV oil-immersed three-phase power transformer has become an indispensable backbone for long-distance power transmission, regional grid interconnection, new energy grid integration and large-scale industrial power supply projects worldwide. Manufactured by Jiangsu Tianhua Transformer, a professional Chinese factory with over 20 years of high-voltage transformer R&D and export experience, this series fully follows international authoritative standards including IEC60076, ANSI C57, IEEE, GB/T6451 and ISO quality management norms, covering rated capacity ranging from 31.5MVA up to 360MVA, with customizable primary rated voltage at 220kV / 230kV and secondary voltage options of 10.5kV, 33kV, 35kV, 66kV, 110kV, 132kV as per clients’ local grid requirements. The product supports both 50Hz and 60Hz power frequency to match power systems across Asia, Africa, Middle East, Europe and South America, adapting to diverse regional grid technical specifications and climatic environments from tropical high-temperature coastal areas to alpine low-temperature inland regions.
Our 220kV transformer is split into two core structural types: on-load tap changer (OLTC) version and off-circuit tap changer (OCTC) version, with two-winding and three-winding customizable layouts available for step-up power plant application or step-down urban substation deployment respectively. The OLTC model realizes real-time voltage regulation under full load without power cut, with typical tap range of ±8×1.25% or ±10×1.25% on high voltage winding, effectively stabilizing output voltage fluctuation caused by peak-valley load change of power grid and renewable energy power generation volatility from wind and photovoltaic power stations. The off-circuit tap changer type features simpler structure and lower procurement cost, suitable for grids with relatively stable load and annual small-range voltage adjustment demand, widely adopted in conventional regional power distribution hubs and medium-sized industrial park substations. All finished products pass strict full-type test including short-circuit withstand test, partial discharge test, temperature rise test and insulation withstand test before factory delivery, ensuring stable long-cycle running under complex grid working conditions.

Availability:

Quantity:



Inquire Add to Basket

Jiangsu Tianhua Transformer Co., Ltd. is located at No.105 Xuhai Road, Xuzhou Economic & Technological Development Zone, Jiangsu Province. It is a national high-tech enterprise, provincial specialized & sophisticated SME and state-level technology-based small and medium enterprise focusing on R&D, intelligent manufacturing and global export of special power distribution transformers. With over a decade of experience in transformer production and supported by Xuzhou’s status as a national comprehensive transportation hub, the company enjoys convenient logistics linking Beijing-Shanghai Railway, Lanzhou-Lianyungang Railway and China-Europe Railway Express. Well-developed multi-modal transport covering highway, railway and ocean shipping effectively cuts costs for raw material procurement and domestic & overseas product delivery.

Through steady development over years, Tianhua has evolved from a small initial workshop into a modern specialized transformer manufacturer integrating independent R&D, full-process production, customized solution design, domestic & overseas project implementation and after-sales maintenance services. Adhering to the core business philosophy of technology-driven development, service priority and integrity-based operation, the company implements production management under ISO9001 quality management system and has obtained authoritative certifications including CE, IEC and CCC. It owns 23 invention and utility model patents related to transformer structure, winding technology, energy saving and noise reduction, alongside 3 software copyrights, consolidating its technical advantages in special transformer industry.

While developing domestic business, Tianhua has proactively expanded global trade with an independent foreign trade department staffed by professional teams to handle international procurement and EPC general contracting projects. Its products are exported to more than 100 countries and regions across Southeast Asia, Central Asia, the Middle East, Africa, South America and Eastern Europe. Long-term authorized agents have been established in Uzbekistan, Kazakhstan, South Africa, Vietnam and other territories. The enterprise regularly participates in bidding for power grid renovation, metallurgical smelting, rail transit and new energy electrolysis projects worldwide, emerging as one of China’s key exporters of special transformers.

220kV power transformer 220kV oil immersed transformer 220kV OLTC power transformer 3 phase 220kV high voltage transformer 220kV step up step down transformer 220kV substation power transformer 220kV wind farm transformer 220kV three winding transformer 31.5MVA~360MVA 220kV transformer ONAN ONAF cooling 220kV transformer

RELATED PRODUCTS

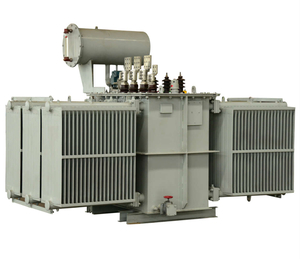

oil Low Loss Power Transformer
